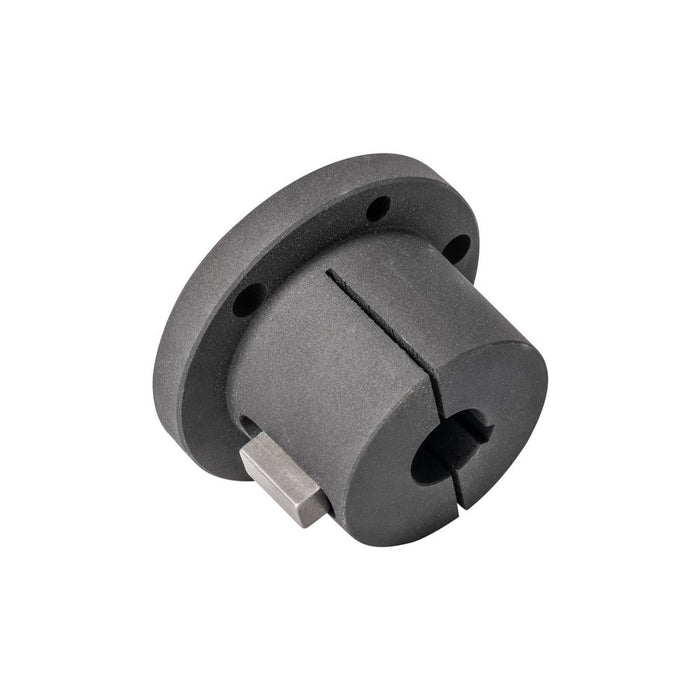

H Series Double Split Taper Bushing - To be used with Split Taper Sprockets or Pulleys
$18.50
SKU H-3/8
H Style Double Split Taper Bushings
To be used with Split Taper Sprockets or Pulleys
Standard H Style Split Taper Bushings are made of powdered metal.
High torque and true concentrically grips.
Widely used in all types of transmission components and shafts with different diameters available in decimal or metric sizes.
Dimensions:
Powdered Metal:
A: 11/32”
B: 1-5/8”
D: 2-1/2”
E: 1”
L: 1-11/32”
Bolt Hole Center: 2”
Cap Screws Size: 1/4 x 1"
Qty: 2
Steel:
A: 1/4”
B: 1-5/8”
D: 2-1/2”
E: 1”
L: 1-1/4”
Bolt Hole Center: 2”
Cap Screws Size: 1/4 x 3/4"
Qty: 2
(No set screw over the keyway)
Double Split Taper Bushing Specs
