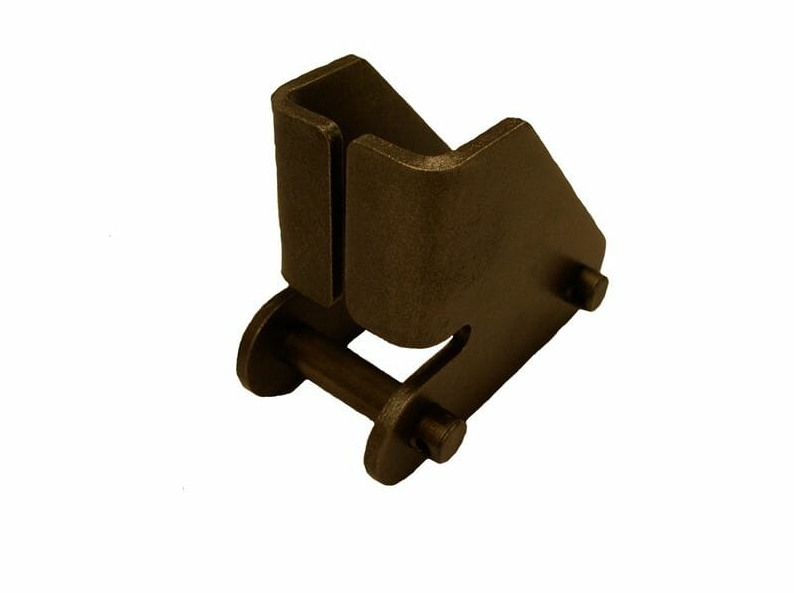

81X Conveyor Chain – H-Pusher Attachment Connecting Link

81X Conveyor Chain - H-Pusher Attachment Connecting Link

81X pusher attachments are for designed for use in sawmills and lumber processing facilities. These attachments provide a reliable solution for efficiently pushing logs down conveyor systems.

Consist of quad staked pins and solid bushings to provide longer wear life and handle heavy loads.
All chain components are heat treated to achieve greater durability and extended chain life.
Used in heavy duty operations and conveying applications in severe environments.

Pitch: 2.609"

Link Plate Height: 1.120"

Link Plate Thickness: 0.156"

Height to Tab Top: 2.563"

Pin Center to Front of Pusher: 0.216"
